F405 F722 Flight Controller FC For RC FPV Racer Drone

F405 F722 Flight Controller FC For RC FPV Racer Drone

$99.99 USD
$99.99 USD
Sale Sold out
Shipping calculated at checkout.
1. The PCB adopts high-end 4-layer 1oZ thickened copper sheet and adopts high-end resin plug hole PCB production process, with strong anti-interference
ability。
2. Adopting industrial grade LDO, resistant to high temperature。
3. Use inline connectors for easy installation and soldering free。
4. The board comes with 4 programmable illusion LED lights, which can freely switch LED lighting effects。
5. Reserve an external LED light strip with a 12V power supply, and customize the remote control channel for light strip switch control。
6. The image transmission power supply can be freely turned on or off by setting a switch channel at the ground station, facilitating ground reference
adjustment。
7. Adopting high-quality Murata capacitors from Japan, with strong filtering performance。
8. Eight motor control signal outputs。
9. Equipped with 6P sky terminal seat。
10. RX2 to SBUS。
FC Specifications：

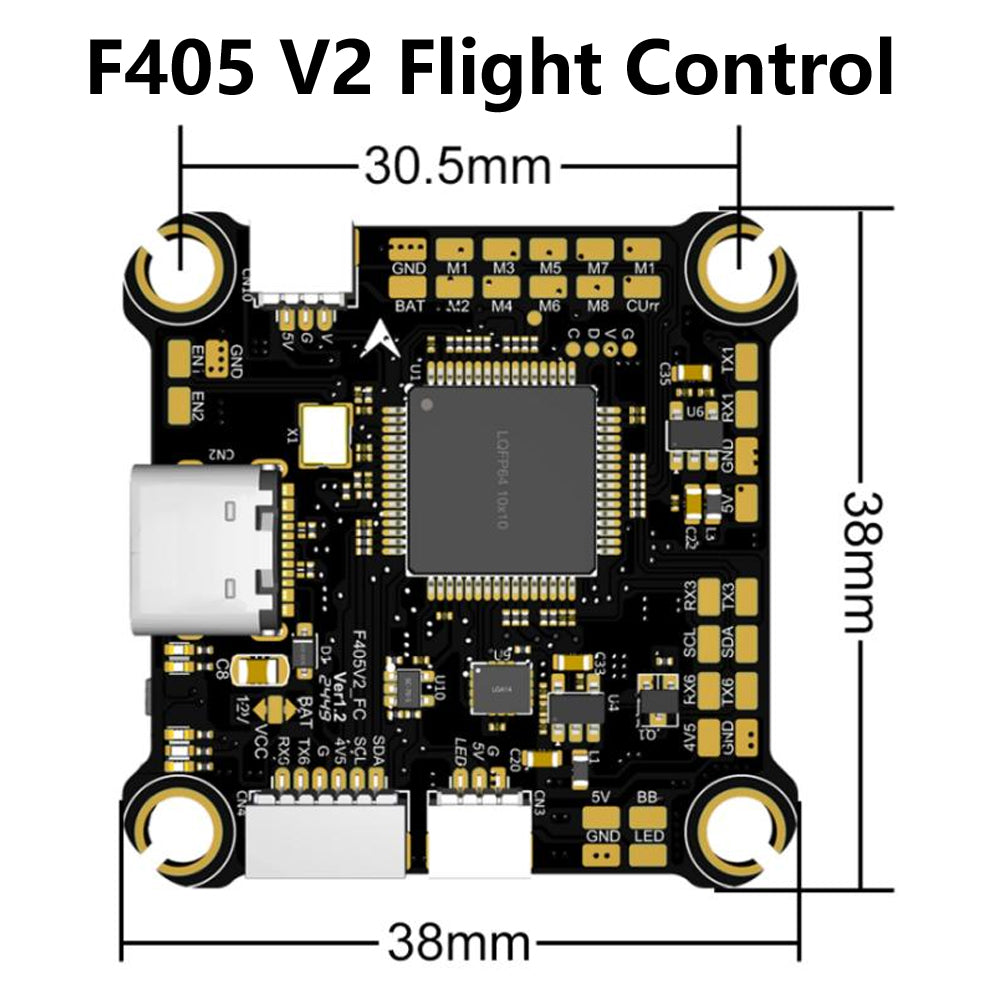

Size: 38 * 38mm (30.5mm-30.5mm mounting hole)
Input voltage: 2S-6S Lipo
Net weight of product: 8.5g
Packaging weight: 40g
Flight control parameters:

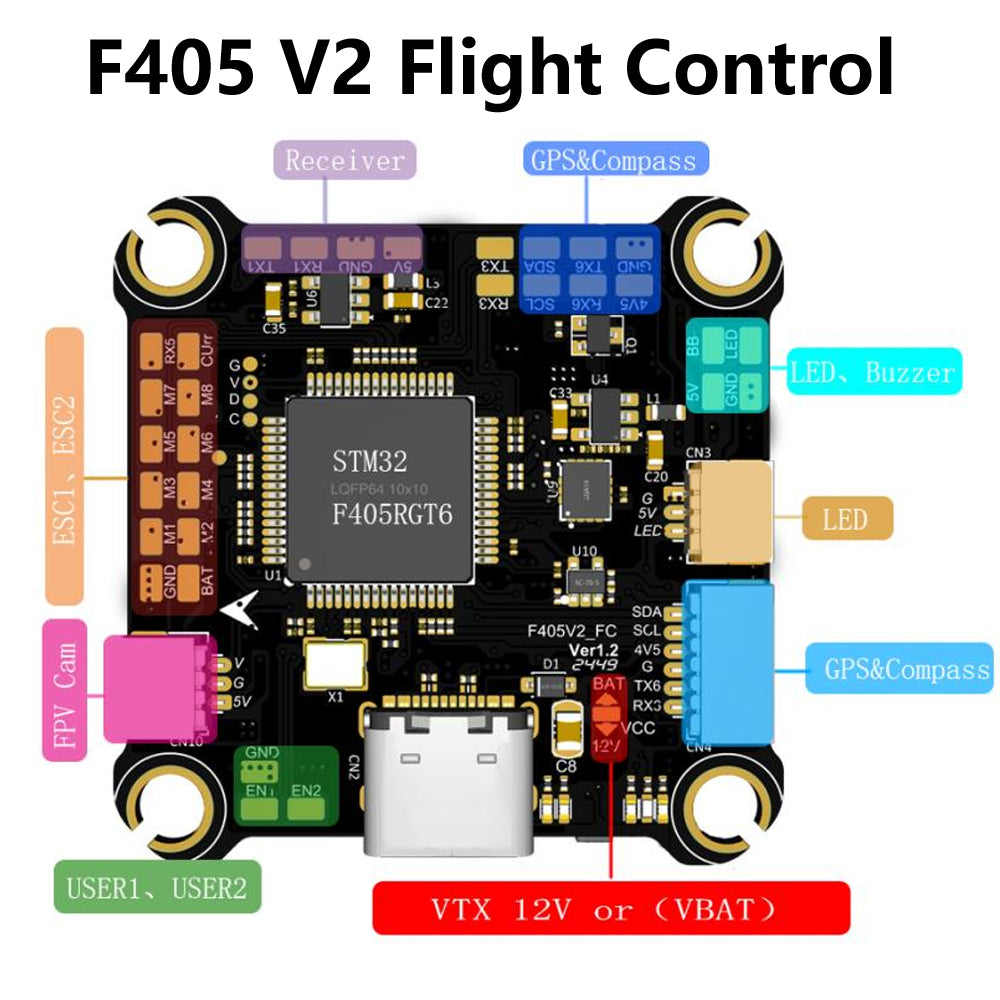

CPU: STM32F405RGT6
IMU: ICM42688
OSD: AT7456E
Barometer: integrated
Black box: 16M
BEC: 5V/2A
BEC: 12V/2.5A
LED: Comes with four programmable LED illusion lights
Sensor: built-in current sensor
Firmware version: F405V2
Receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver
